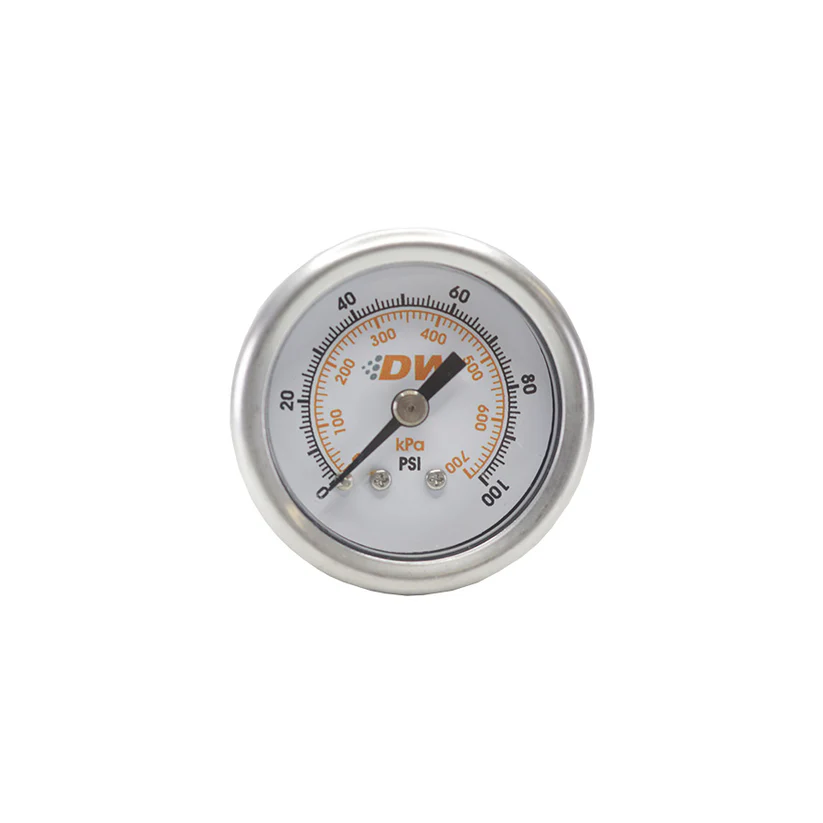

DeatschWerks drivstofftrykksmåler 0-100 PSI / 0-7 bar

Mechanical DeatschWerks fuel pressure gauge developed for monitoring fuel pressure in performance and motorsport applications. The gauge has a measuring range from 0 to 100 PSI on the outer scale and 0 to 7 bar on the inner scale, making it suitable for many EFI and carburettor-based fuel systems.

The gauge is equipped with 1/8" NPT thread, so it can be mounted directly in many fuel rails, fuel pressure regulators or adapters. The compact 38 millimetre diameter makes it easy to integrate, even where space is limited.

The white face with black markings provides high readability, while the brushed housing gives a classic and functional appearance in the engine bay. The gauge is mechanical and therefore requires no electrical connection.

Note:
Always check compatibility between thread type, pressure range and fuel system before installation.

Specifications:
Type: Mechanical fuel pressure gauge
Manufacturer: DeatschWerks
Measuring range: 0-100 PSI / 0-7 bar
Thread: 1/8" NPT
Diameter: 38 millimetres / 1.5"
Face colour: White
Housing: Brushed metal
Gauge principle: Mechanical
Application: Fuel pressure
Mounting: Fuel rail, regulator or adapter with 1/8" NPT thread
