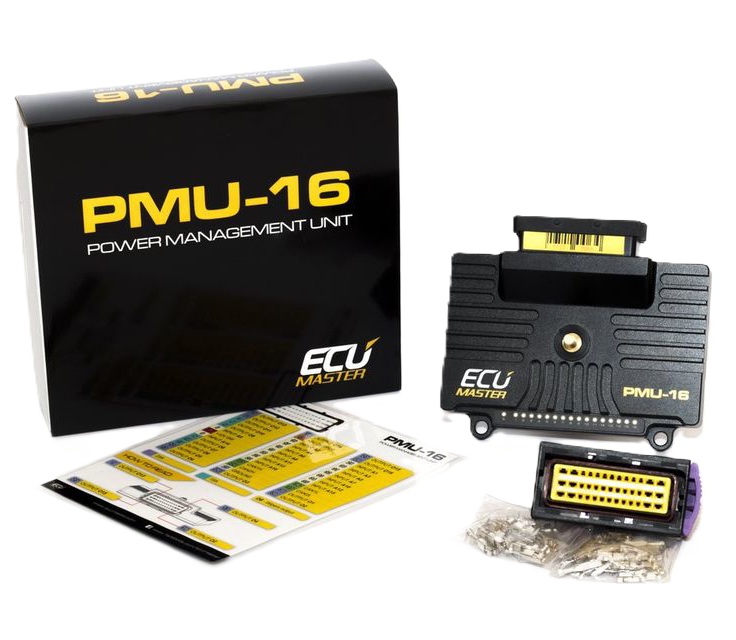

ECU Master PMU

General

Temperature range	AECQ100 GRADEE1 (-40 to +125 degrees Celcius.
CPU	32 bits automotive, 90 MIPS
Reverse polarity protection	Yes, internal
Operating Voltage	6-22V, immunity to transients accordig to ISO 7637
Enclosure	IP 60, bespoke CNC machined aluminium
Size (mm) and weight (g)	131x112x32.5 - 345g
Connectors	1x 39 Automotive connector, 1x M6 stud for battery connection
PC Communication	CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

Outputs:

High current outputs	10x25A(cont.), 6x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output.
Total current output	150A continuous
Output current control step	100mA
Wipers output	Dedicated output with wiper braking feature
+5V	Monitored 5V, 500mA output for powering external sensors.

Inputs:

Analog inputs	16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads	2x ECUmaster keypads (4, 6, 8, 12 keys)

ECU Master PMU - Standard

Varenummer: 1.00145.05-PMU-16

kr 10 811,74 (NOK)

Antall:

ECU Master PMU - Med datalogger

Varenummer: 1.00145.03-PMU-16DL

kr 12 164,06 (NOK)

Antall:

ECU Master PMU - Autosport Version

kr 18 763,34 (NOK)

Antall:
