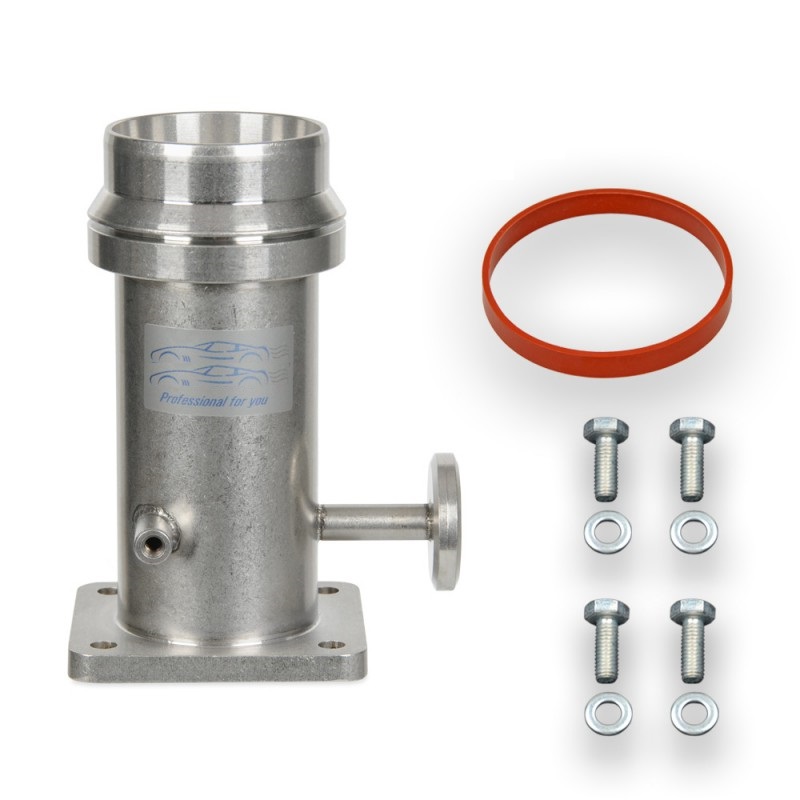

Kit Content and Specifications:
1 x EGR Replacement Pipe (54 mm outer diameter, 142 mm in Length, stainless steel - lifetime warranty)
1 x Flange Gasket
4 x EGR bypass Screw with Washer
Please Note!
Generally until 2002-2004 no ECU warning light will appear. Later models with pneumatic and electronic EGR valves, fitment of this part may result in the ECU warning light appearing. We recommend a re-map of the ECU so that the EGR function can be removed completely, this can be carried out by tuner.
For use outside public roads and in motor sport.
Application:
1' E87, 118d, M47N2, 02.2003 - 02.2007
1' E87, 120d, M47N2, 02.2003 - 02.2007
3' E90, 318d, M47N2, 02.2004 - 08.2008
3' E90, 320d, M47N2, 02.2004 - 08.2008
3' E90, 330d, M57N2, 02.2004 - 08.2008
3' E90, 330xd, M57N2, 02.2004 - 08.2008
3' E92, 330d, M57N2, 02.2004 - 08.2008
3' E92, 330xd, M57N2, 02.2004 - 08.2008
3' E93, 330d, M57N2, 09.2005 - 02.2009
5' E60, 520d, M47N2, 02.2002 - 02.2007
5' E60, 525d, M57N, 02.2002 - 02.2007
5' E60, 530d, M57N2, 02.2002 - 02.2007
5' E60, 530xd, M57N2, 02.2002 - 02.2007
5' E60 LCI, 520d, M47N2, 10.2005 - 12.2009
5' E60 LCI, 530d, M57N2, 10.2005 - 12.2009
5' E60 LCI, 530xd, M57N2, 10.2005 - 12.2009
5' E61, 520d, M47N2, 11.2002 - 02.2007
5' E61, 525d, M57N, 11.2002 - 02.2007
5' E61, 530d, M57N2, 11.2002 - 02.2007
5' E61, 530xd, M57N2, 11.2002 - 02.2007
5' E61 LCI, 520d, M47N2, 11.2005 - 05.2010
5' E61 LCI, 530d, M57N2, 11.2005 - 05.2010
5' E61 LCI, 530xd, M57N2, 11.2005 - 05.2010
7' E65, 730d, M57N2, 07.2004 - 07.2008
7' E66, 730Ld, M57N2, 03.2005 - 07.2008
X3 E83, 2.0d, M47N2, 01.2003 - 07.2006
X3 E83, 3.0d, M57N, 01.2003 - 07.2006
X3 E83, 3.0d, M57N2, 01.2003 - 07.2006
X3 E83 LCI, 2.0d, M47N2, 03.2006 - 08.2010
X3 E83 LCI, 3.0d, M57N2, 03.2006 - 08.2010
X5 E70, 3.0d, M57N2, 02.2006 - 03.2010
X6 E71, 30dX, M57N2, 09.2007 - 03.2010
If in doubt please check your engine code. Alternatively if your engine or vehicle model is not listed please contact us before placing an order.
OEM numbers of EGR valves:
11717792077
11717804381
