Holset Super HX40 - Original

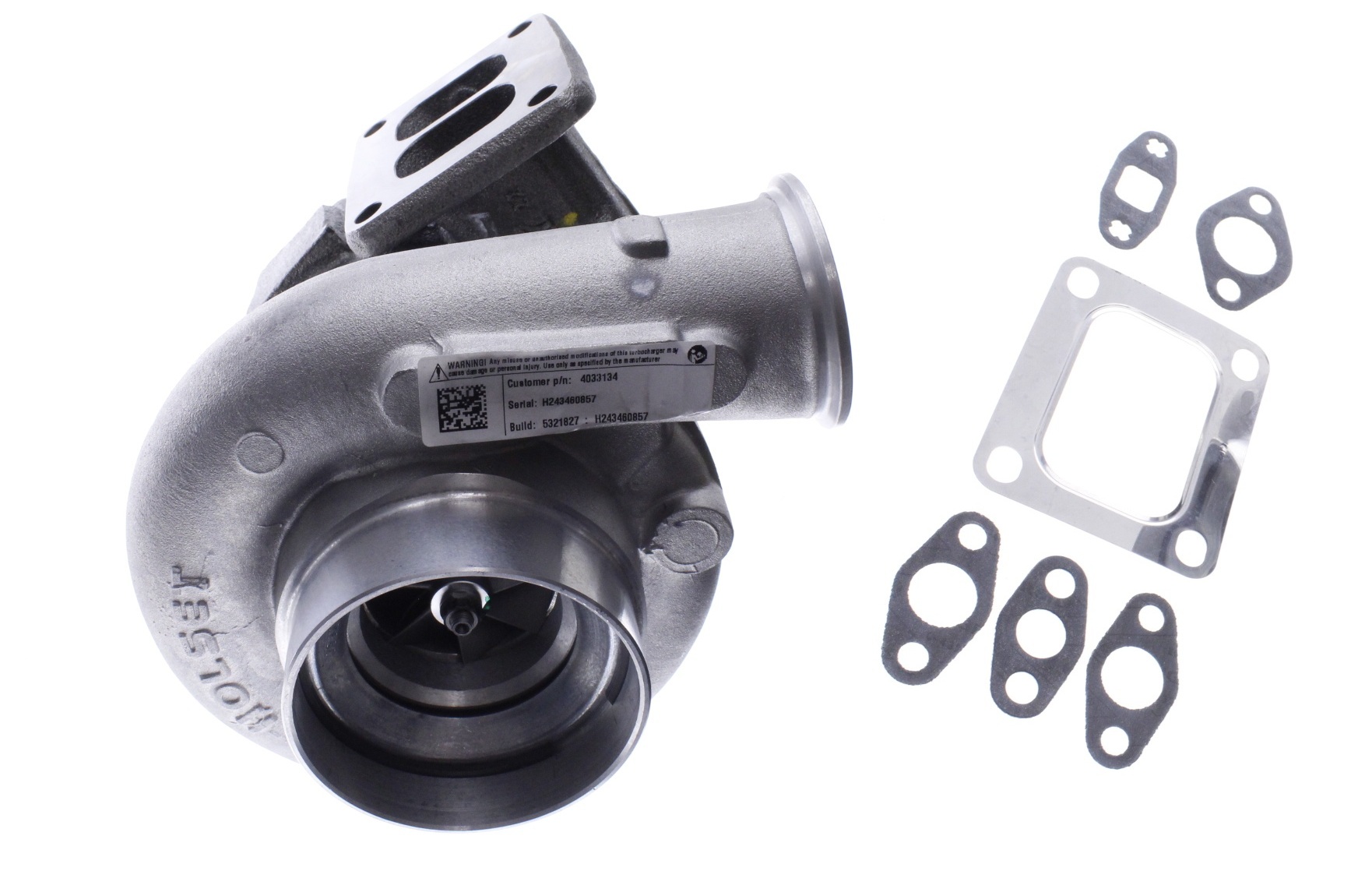

Holset HX40 turbo

Denne turboen passer til motoren fra 2,2 til 7,2 liter.

Denne turbolader har en T4 flens på tilgangssiden med delt inngang.

Holset HX 40 turbo info:

Manifold flange: T4 divided
Downpipe flange: 6- bore
Bolt hole cc: 60mm
Bolt hole CC (across):120mm
Exhaust side: 16cm² (small size)

Compressor housing inlet: 102mm
Compressor housing outlet: Vband 52mm x 74mm

Compressor wheel inlet: 58mm
Compressor wheel outlet: 85mm
Turbine wheel inlet: 76mm
Turbine wheel outlet: 64mm

Oil cooled / 360 ° bearing

For petrol engine this is good up to 700hp. - Diesel tuning up to 400 hp.

"Super tractor turbo"
