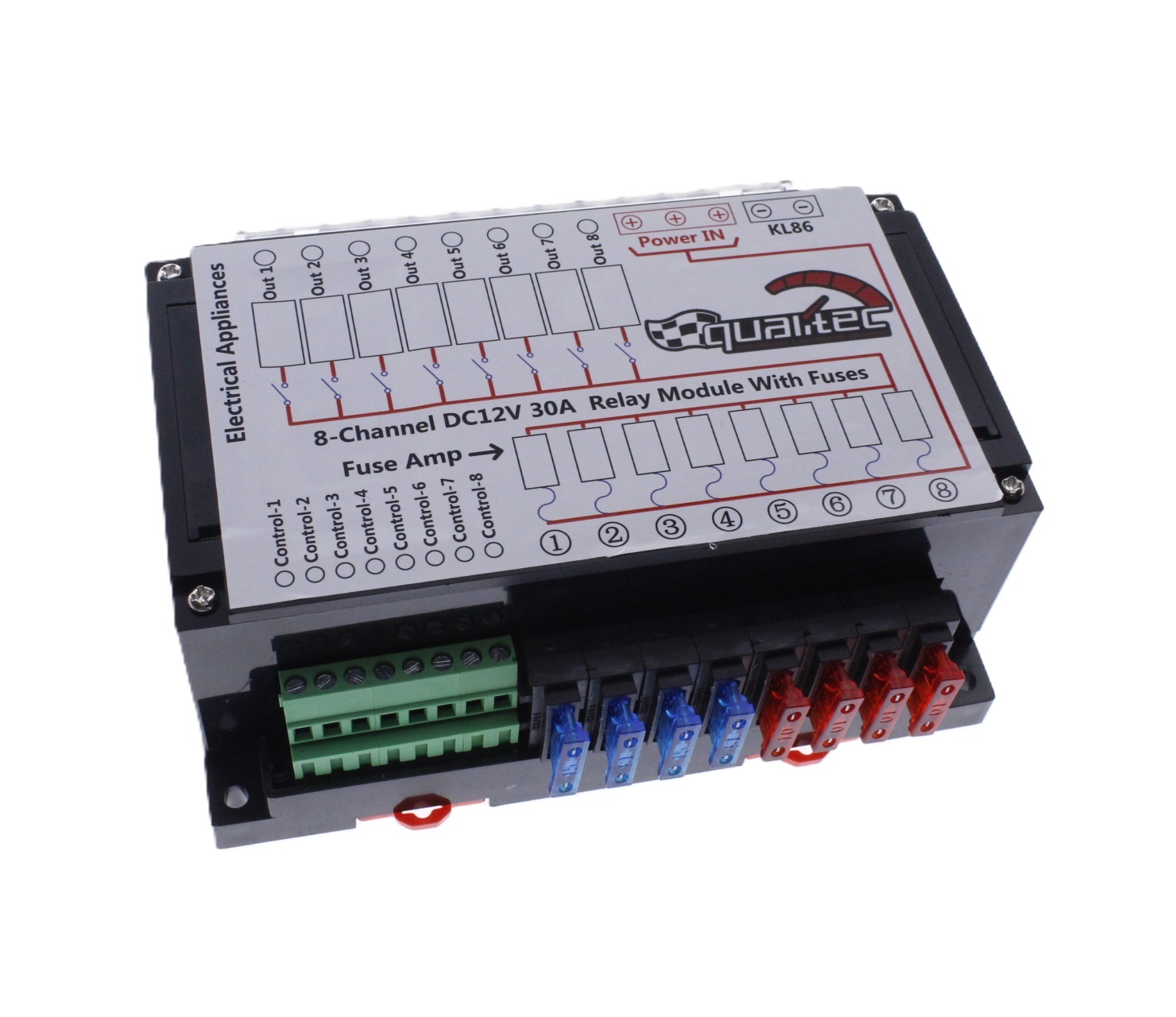

TYTXRV 8-channel DC 12V 30A relay module with fuses

Super fin relæboks der er smart og nem at lave rigtig fin ledningsarbejde med.

Sku: 1.00123.03-0100471

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

kr 1.232,40 (NOK) inkl mva

Antall:

i h

By inserting 12 volts into GND, "Control 1-8" acts as ground control

Rated voltage: 12V

Max contact voltage: DC 30V

Max contact current: 30A

Max fuse: 30A (optional with 5A, 10A, 15A, 20A, 25A)

Max consumption: 12V / 0.8A

Durability: 100,000 operations min.

Ambient operating temperature: -20 ~ +85 C degrees

Ambient storage temperature: -20 ~ +80 C degrees

Dimensions: 15.5 x 11 x 6 cm
